Athletics Track Dimensions 2026: Standard Size & Measurements
An athletics track is designed with carefully measured straights, curves, lanes, markings, and starting positions so athletes can compete under consistent conditions. For most outdoor competitions, the standard layout is a 400m oval track. Understanding Athletics Track Dimensions 2026 is useful for athletes, coaches, facility managers, schools, and anyone planning or comparing a running track.
World Athletics provides the technical rules and facility guidance used for competition tracks. Its 2026 technical rules specify a standard lane width of 1.22m ± 0.01m for races up to and including 400m.

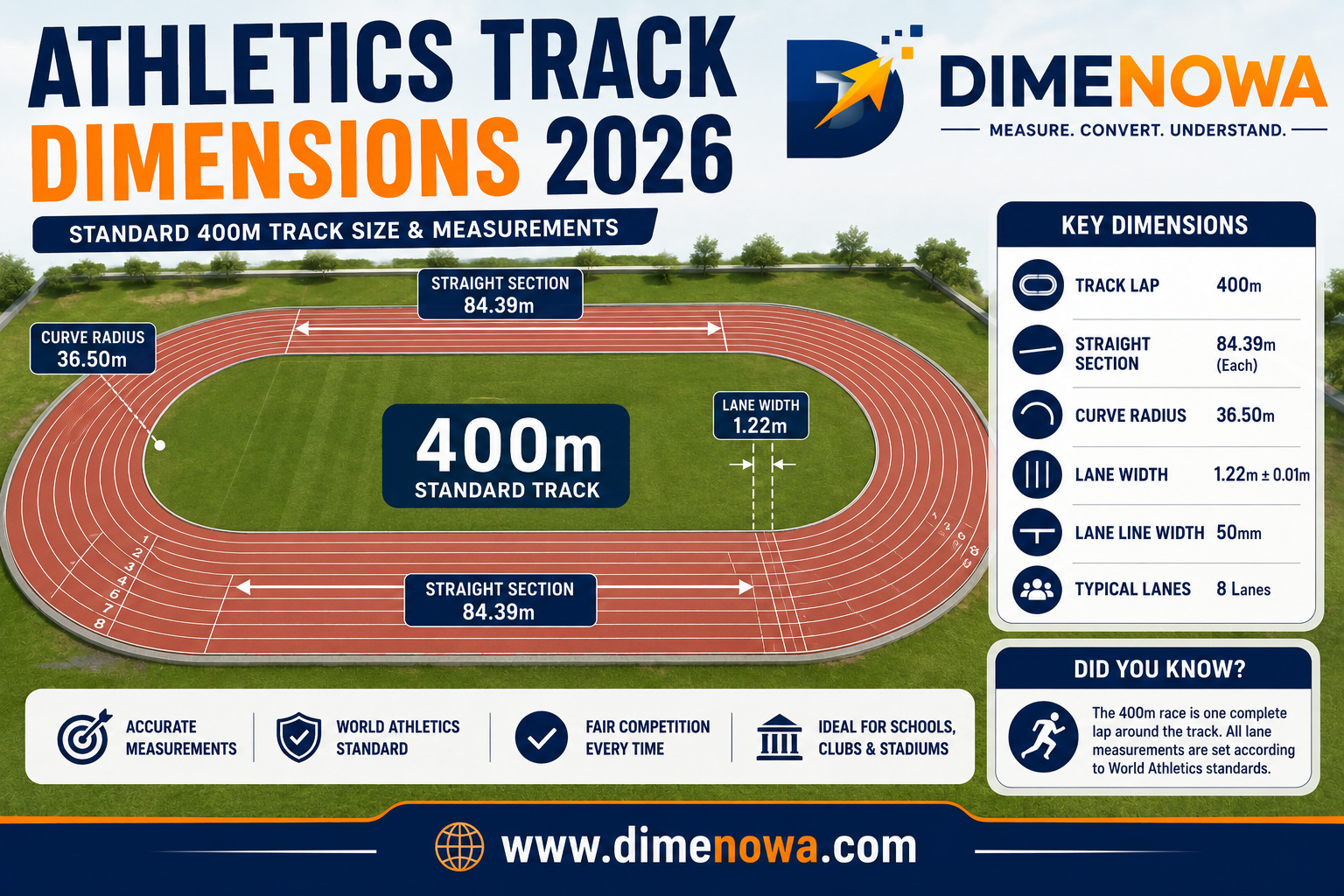

Standard 400m Athletics Track Dimensions
A standard outdoor athletics track is normally designed so that one lap around the designated running line of lane 1 measures 400m.
The standard layout uses two straight sections and two semicircular bends. World Athletics’ track facilities manual specifies two straights of approximately 84.39m each and bends with a construction radius of 36.50m.
| Track Feature | Standard Measurement |
|---|---|
| Track lap | 400m |
| Straight section | 84.39m |
| Bend radius | 36.50m |
| Lane width | 1.22m ± 0.01m |
| Lane line width | 50mm |
| Typical competition lanes | 8 lanes |
The exact overall footprint of a facility can be larger because space is needed outside the running lanes for safety, officials, athlete movement, and other events.
Athletics Track Lane Width
Lane width is one of the most important measurements on a running track. Under the 2026 World Athletics Technical Rules, lanes for races up to and including 400m have a nominal width of 1.22m ± 0.01m, including the lane line on the right. The lane lines are 50mm wide.
Older tracks constructed before January 1, 2004 may have had lanes up to 1.25m wide, but when such a track is fully resurfaced, the current lane-width requirement applies.
For another sports playing-area measurement guide, explore our Basketball Court Dimensions article.
How Long Is an Athletics Track?
The standard outdoor athletics track is 400m for one complete lap around the designated measurement line in lane 1.
The 400m distance is important because many well-known track events use the standard oval. For example, the 400m race consists of one complete lap of a standard outdoor track.
Other common events include:
- 100m sprint
- 200m sprint
- 400m sprint
- 800m
- 1500m
- 5000m
- 10,000m
- Hurdles
- Steeplechase
Track Shape and Curves
A standard 400m track has two parallel straights connected by two semicircular bends. This design creates a balanced oval shape and helps maintain consistent racing conditions.
The standard construction described by World Athletics uses a 36.50m radius for the bends and 84.39m straight sections.
You can also compare athletics equipment measurements with our Skateboard Dimensions guide.
The actual running distance is measured along a defined measurement line rather than simply around the inside edge of the track. This distinction is important when constructing or certifying a competition facility.

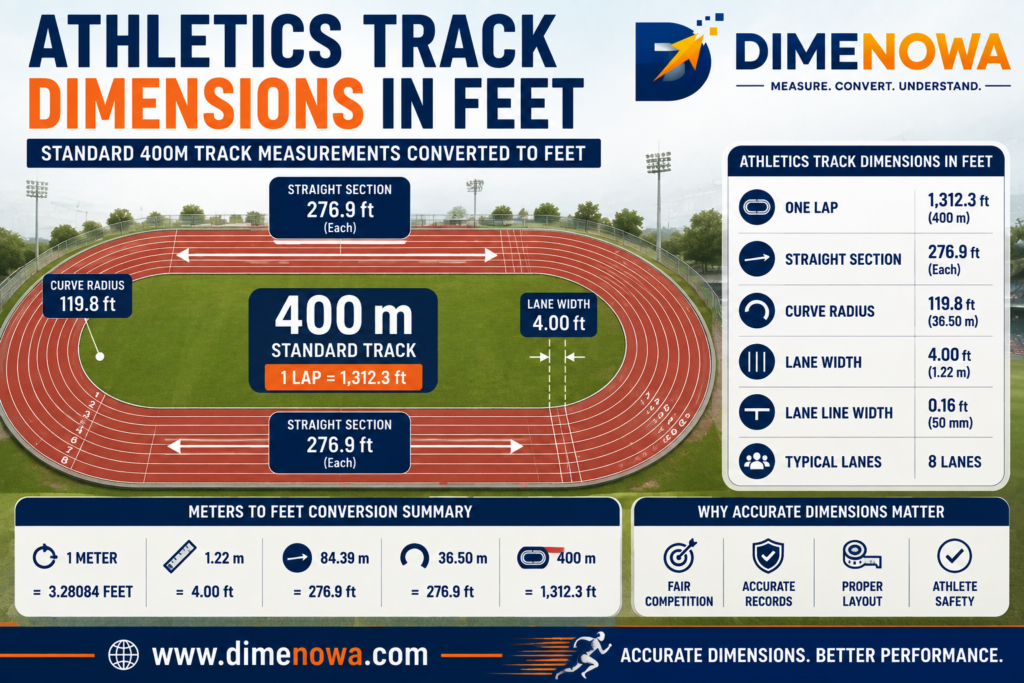

Athletics Track Dimensions in Feet
For readers more familiar with Imperial measurements, the main dimensions can be approximated as follows:
| Measurement | Meters | Approx. Feet |
| One lap | 400m | 1,312.3 ft |
| Lane width | 1.22m | 4.00 ft |
| Straight | 84.39m | 276.9 ft |
| Bend radius | 36.50m | 119.8 ft |
These conversions are useful for initial planning, but professional track construction should use the official metric specifications and certified setting-out plans.
Track Markings and Starting Lines
Track markings are essential because they identify lanes, start lines, finish lines, breaklines, and other competition areas.
In races up to and including 400m, athletes generally remain in their designated lanes throughout the race. For 800m, athletes start in lanes before moving toward the inside after the appropriate breakline. World Athletics rules specify the relevant race procedures and track markings.
If you need help converting track measurements, visit our Millimetre to Centimetre Conversion guide.
Starting positions on curved races are staggered because athletes in outside lanes travel a greater geometric distance around the bends. The stagger ensures that competitors cover the correct race distance.
Why Track Dimensions Matter
Accurate track dimensions are important for fair competition. Even a small construction or marking error can affect measured race distances.
A correctly designed track provides:
- Consistent lane widths
- Accurate race distances
- Proper staggered starts
- Reliable timing and records
- Suitable space for field events
- Safer movement for athletes and officials
World Athletics maintains technical rules and facility manuals covering track construction, measurements, markings, equipment, and certification.
Athletics Track vs Indoor Track
Outdoor and indoor tracks are not necessarily the same size.
A standard outdoor track is generally 400m, while a standard indoor track is commonly 200m. World Athletics notes that indoor 400m events involve two laps of a standard 200m indoor track.
For winter sports equipment sizing, see our Snowboard Size guide.
Indoor facilities also have tighter curves and different layouts because the building itself limits the available space.
Frequently Asked Questions
How long is a standard athletics track?
A standard outdoor athletics track measures 400m for one complete lap around the specified running line in lane 1.
How wide is an athletics track lane?
A standard lane is 1.22m ± 0.01m wide under the 2026 World Athletics Technical Rules.
How many lanes does a standard athletics track have?
Competition tracks commonly have eight lanes. World Athletics states that tracks used for certain World Rankings Competitions should allow a minimum of eight lanes.
What is the radius of a standard track curve?
The standard 400m track design uses a bend construction radius of 36.50m.
How long is the straight part of a 400m track?
The standard design uses two straight sections, each approximately 84.39m long.
Is an indoor track 400m?
Usually no. A standard indoor athletics track is commonly 200m, so athletes complete two laps for a 400m race.
Why are starting positions staggered?
Staggered starts compensate for the additional distance covered by athletes running in outer lanes around the curved sections.
Who sets international athletics track standards?
World Athletics publishes the international Competition and Technical Rules and maintains technical guidance for athletics facilities.
Conclusion
Athletics Track Dimensions 2026 are based on precise measurements designed to make competition fair, consistent, and measurable. A standard outdoor track uses a 400m running distance, approximately 84.39m straights, 36.50m bend radius, and 1.22m-wide lanes under the current World Athletics technical rules.
Whether you are studying track dimensions, planning a sports facility, training for a race, or simply comparing sports measurements, understanding these specifications gives you a clearer picture of how modern athletics tracks are designed.
